Best Price for China 6mm Insulation Epoxy Resin Fiberglass Board

Short Description:


  • Thickness: 0.3mm-80mm
  • Dimension: 970*1970mm 970*1200mm
  • Color: Dark Brown
  • Customization: Processing based on Drawings
  • Product Detail

    Product Tags

    The organization keeps on the procedure concept “scientific management, high quality and efficiency primacy, purchaser supreme for Best Price for China 6mm Insulation Epoxy Resin Fiberglass Board, All products come with good quality and perfect after-sales services. Market-oriented and customer-oriented are what we have been being after. Sincerely look forward to Win-Win cooperation !
    The organization keeps on the procedure concept “scientific management, high quality and efficiency primacy, purchaser supreme for China Fiber Epoxy Resin Sheet, Epoxy Fibre Sheet, We warmly welcome you to come to visit us personally. We hope to establish a long-term friendship based on equality and mutual benefit. If you want to get in touch with us, please do not hesitate to call. We will be your best choice.

    Product Description

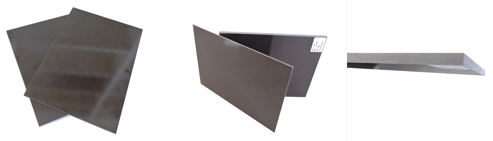

    This product is a laminated product which made with the chemical treatment electrical purposed alkali-free glass cloth as the backing material,by hot pressing with high Tg epoxy resin as binder.It has high mechanical strength under high temperature,with good electrical stability under high humidity.The thermostability is grade F,suitable for all kinds of motor, electric appliances,electronic and other fields.

    Features

    1.Good electrical stability under high humidity;
    2.High mechanical strength under high temperature,the mechanical strength retention rate≥50% under 180℃;
    3.Moisture resistance;
    4.Heat resistance;
    5.Temperature resistance:Class H,180℃

    hrt

    Main Performance Index

    In accordance with GB/T 1303.4-2009 electrical thermosetting resin industrial hard laminates – Part 4: epoxy resin hard laminates.

    Appareance: the surface should be flat, free of bubbles, pits and wrinkles, but other defects that do not affect the use are allowed, such as: scratches, indentation, stains and a few spots.The edge shall be cut neatly, and the end face shall not be delaminated and cracked.

    Application

    Suitable for all kinds of motor, electric appliances,electronic and other fields.

    Main Performance Index

    NO. ITEM UNIT INDEX VALUE
    01 Density g/cm³ 1.8-2.1
    02 Water absorption % <0.5
    03 Vertical bending strength Normal Lengthways MPa ≥450
    ≥380
    Lateral
    180±2℃ Lengthways ≥250
    ≥190
    Lateral
    04 Impact strength(Charpy type) No Gap Lengthways KJ/m² ≥180
    Lateral ≥137
    05 compression strength Vertical MPa ≥500
    Parallel ≥250
    06 Tensile strength Lenthways MPa ≥320
    Lateral ≥300
    07 Bond strength N ≥7200
    08 Vertical electric strength(in oil of 90℃±2℃ 1min) 1mm MV/m ≥17.0
    2mm
    ≥14.9
    3mm
    ≥13.8
    09 Parallel breakdown voltage(in oil of 90℃±2℃) KV ≥40
    10 Relative dielectric constant(50Hz) - ≤5.5
    11 dielectric dissipation factor(50Hz) - ≤0.04
    12 Parallel insulation resistance Normal MΩ ≥5.0×106
    After soaking for 24 hours ≥5.0×104
