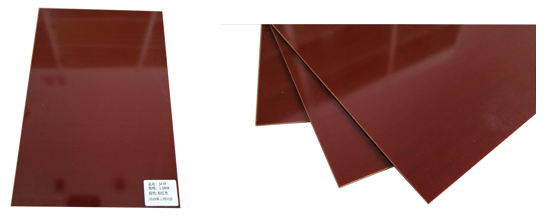

Factory supplied China Epoxy Glass Fiber Laminate Sheet G11/Epgc203

Short Description:


  • Thickness: 0.3mm-80mm
  • Dimension: 1020*1220mm 1020*2020mm 1220*2040mm
  • Color: Reddish brown
  • Customization: Processing based on Drawings
  • Product Detail

    Product Tags

    Persisting in “High good quality, Prompt Delivery, Aggressive Price”, we’ve established long-term cooperation with shoppers from each overseas and domestically and get new and previous clients’ high comments for Factory supplied China Epoxy Glass Fiber Laminate Sheet G11/Epgc203, Our Enterprise Core Principle: The prestige 1st ;The quality guarantee ;The customer are supreme.
    Persisting in “High good quality, Prompt Delivery, Aggressive Price”, we’ve established long-term cooperation with shoppers from each overseas and domestically and get new and previous clients’ high comments for China G11 Epoxy Glass Laminate, Epgc203 Sheet, We have been introduced as a one of the growing manufacture supplier and export of our goods. Now we have a team of dedicated trained professional who take care the quality and timely supply. If you are looking for Good Quality at a good price and timely delivery. Do contact us.

    Product Description

    This product is a laminated sheet which made with processed non-alkali glass fiber cloth as the backing material, by hot pressing with grade F benzo oxazine resin. It has good mechanical and electrical properties,and flame retardant, especially has high mechanical strength retention and excellent electrical properties under high temperature.Suitable for grade F motor and electrical equipment as high quality insulation structure , has the advantage of good machinability and wide applicability in the similar products.

    Features

    1.Good mechanical and electrical properties;
    2.High mechanical strength retention and excellent electrical properties under high temperature;
    3.Moisture resistance;
    4.Heat resistance;
    5.Temperature resistance:Class F,155℃
    6.Good Machinability and wide applicability
    7.Flame retardant property:UL94 V-0

    svd

    Compliance With Standards

    In accordance with GB/T 1303.4-2009 electrical thermosetting resin industrial hard laminates – Part 4: epoxy resin hard laminates.

    Appareance: the surface should be flat, free of bubbles, pits and wrinkles, but other defects that do not affect the use are allowed, such as: scratches, indentation, stains and a few spots.The edge shall be cut neatly, and the end face shall not be delaminated and cracked.

    Application

    The technical data of 347F is similar to FR5,Suitable for grade F motor and electrical equipment as high quality insulation structure.

    Main Performance Index

    NO. ITEM UNIT INDEX VALUE
    01 Density g/cm³ 1.8-2.1
    02 Water absorption % <0.5
    03 Vertical bending strength Normal MPa ≥400
    155±2℃ ≥250
    04 Impact strength(Charpy type) No Gap Lengthways KJ/m² ≥129
    Lateral ≥77
    05 compression strength Vertical MPa ≥300
    Parallel ≥200
    06 Tensile strength Lenthways MPa ≥240
    Lateral ≥180
    07 Bond strength N ≥6800
    08 Vertical electric strength(in oil of 90℃±2℃ 1min) 1mm MV/m ≥14.2
    2mm
    ≥12.4
    3mm
    ≥11.5
    09 Parallel breakdown voltage(in oil of 90℃±2℃) KV ≥45
    10 Relative dielectric constant(50Hz) - ≤5.5
    11 dielectric dissipation factor(50Hz) - ≤0.04
    12 Parallel insulation resistance Normal MΩ ≥1.0×106
    After soaking for 24 hours ≥1.0×104
    13 Surface/volumn insulation resistance Normal MΩ ≥1.0×106
    After soaking for 24 hours ≥1.0×104
    155±2℃ ≥1.0×104
    Fire retardant(UL-94) V-0

    Persisting in “High good quality, Prompt Delivery, Aggressive Price”, we’ve established long-term cooperation with shoppers from each overseas and domestically and get new and previous clients’ high comments for Factory supplied China Epoxy Glass Fiber Laminate Sheet G11/Epgc203, Our Enterprise Core Principle: The prestige 1st ;The quality guarantee ;The customer are supreme.
    Factory supplied China G11 Epoxy Glass Laminate, Epgc203 Sheet, We have been introduced as a one of the growing manufacture supplier and export of our goods. Now we have a team of dedicated trained professional who take care the quality and timely supply. If you are looking for Good Quality at a good price and timely delivery. Do contact us.
