Product description:

Thickness: 0.3mm-80mm

Dimension:1030*1230mm

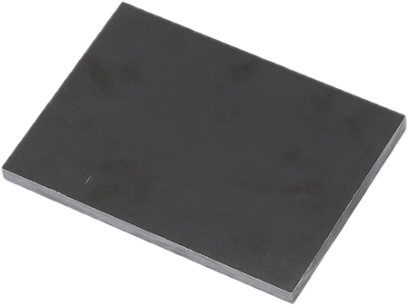

ESD G10 FR4 SHEET is a laminated product made from non-alkali glass cloth dipped in epoxy resin by hot pressing. It has anti-static (anti-static) characteristics and good mechanical processing performance. The anti-static plate can be divided into three types: full anti-static plate, single-sided anti-static plate and double-sided anti-static plate.Suitable for electronic and electrical industries.The fire resistance for ESD FR4 sheet is meet UL94 V-0

Features:

1.Anti-static properties:surface resistance value is 10⁶-10⁹Ω

2.Good mechanical properties;

3.Moisture resistance;

4.Heat resistance;

5.Temperature resistance:Grade B,130℃

Compliance with standards:

Appearance: the surface should be flat, free of bubbles, pits and wrinkles, but other defects that do not affect the use are allowed, such as: scratches, indentation, stains and a few spots.The edge shall be cut neatly, and the end face shall not be delaminated and cracked.

Application:

Can be used as anti-static hollow plate for current isolation and service for various test fixture manufacturers, ICT test and smelter test manufacturers, ATE vacuum smelter manufacturers, functional smelter manufacturers and various electronic and motherboard manufacturers.
